6 Products in this range
This range exists for two moments in a plant's life. The first is the unplanned one — a weep or a pinhole on a live line, where a repair clamp buys the weeks needed to reach a planned outage instead of forcing one today.
The second is the designed-in one. Hot piping grows, cold piping contracts, and both have to slide, hang and rest somewhere. Slide plates, clamps and hangers are made to the pipe support drawings so the movement happens where the stress engineer intended it to.
Six product families for emergency repair, permanent support and transit protection.
01
Bolted split shells with a moulded gasket that seal a pinhole, weep or split while the line stays in service. Because the gasket is compressed by the bolt load rather than the line pressure, the seal actually improves as the clamp is tightened.
02

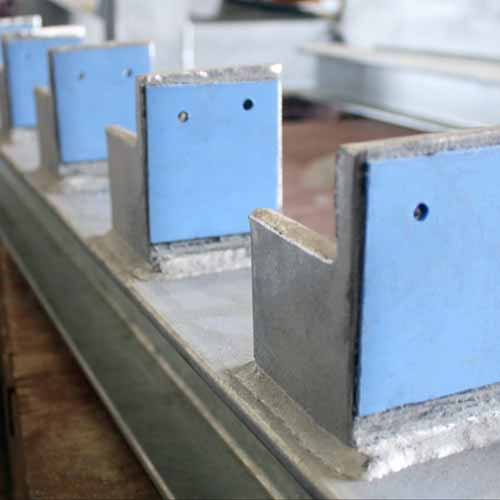

A low-friction bearing pair — typically PTFE bonded to a stainless backing plate — that lets a hot line expand across its support without dragging the steelwork with it. Getting the friction coefficient down is what keeps the nozzle loads inside the allowable.
03

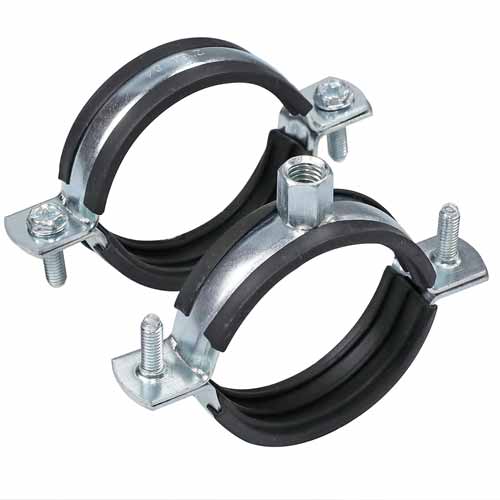

U-bolts, riser clamps, three-bolt clamps, clevis hangers, trapeze assemblies, rod hangers, turnbuckles, beam attachments, shoes and guides — fabricated to MSS-SP-58 and matched to the support drawing rather than picked from a nearest-size catalogue.
04

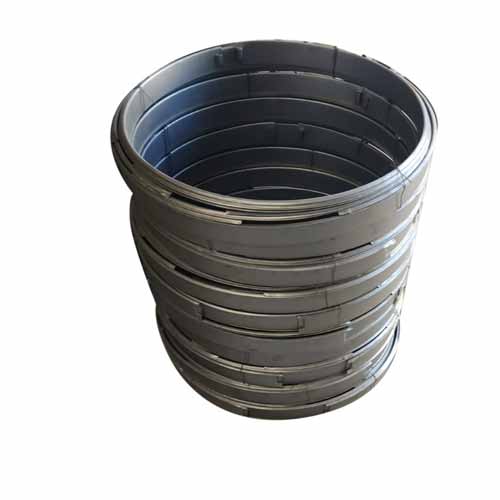

Caps that clip or bolt over a machined weld bevel to protect it through handling, stacking, transport and site storage. A bevel that arrives dented has to be re-machined before it can be welded, so the cap is the cheapest insurance on the consignment.
05
Full-encirclement split sleeves welded around a corroded, dented or mechanically damaged section of pipeline. Type A restores support; Type B is fillet welded to the carrier pipe and becomes pressure-containing in its own right.
06

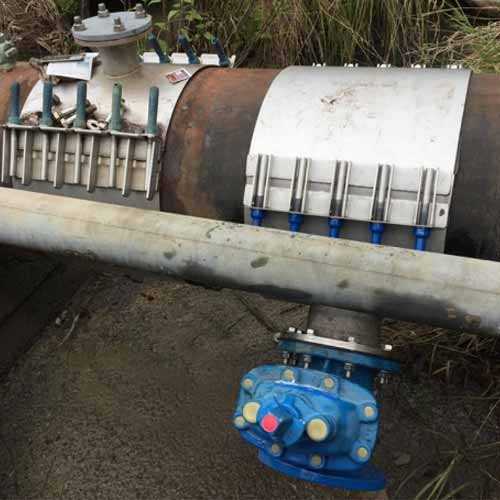

Mechanical clamps for a permanent or semi-permanent repair where welding is not possible — flammable service, thin wall, or simply no hot work permit. Supplied in single band, double band and full circle forms, with plain or tapped outlets.
Shell, bolting and sealing material are chosen against the media, temperature and environment together.
Swipe the table sideways to see all columns.
| Component | Standard Material | Upgraded Material | Governing Standard |
|---|---|---|---|
| Clamp / Sleeve Shell | ASTM A516 Gr. 70, IS 2062 E250 | ASTM A240 304 / 316, Duplex | ASME Sec. VIII Div. 1 |
| Repair Sleeve Plate | API 5L Gr. B / X52 | API 5L X60 / X65 | API 5L, ASME B31.4 / B31.8 |
| Support Clamps & Hangers | IS 2062, ASTM A36 | ASTM A240 304 / 316 | MSS-SP-58 / SP-69 |
| Slide Plate Backing | Carbon steel | SS 304 / SS 316 | Manufacturer standard |
| Slide Plate Facing | Virgin PTFE | Graphite / bronze filled PTFE | ASTM D4894 |
| Bolting | ASTM A193 B7 / A194 2H | ASTM A193 B8 / B8M | ASTM A193 / A194 |
| Sealing Element | Nitrile (NBR), EPDM | Viton (FKM), graphite | ASTM D2000 |
Clamps for potable water service are supplied with WRAS-approved elastomers where specified.
Typical composition of the shell, plate and bolting materials, percent by weight.
Swipe the table sideways to see all columns.
| Grade | C | Mn | Si | P max | S max | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| A516 Gr. 70 | 0.27 max | 0.85–1.20 | 0.15–0.40 | 0.035 | 0.035 | — | — | — |
| IS 2062 E250 | 0.23 max | 1.50 max | 0.40 max | 0.045 | 0.045 | — | — | — |
| API 5L X52 | 0.24 max | 1.40 max | 0.40 max | 0.025 | 0.015 | — | — | — |
| ASTM A240 304 | 0.08 max | 2.00 max | 0.75 max | 0.045 | 0.030 | 18.0–20.0 | 8.0–10.5 | — |
| ASTM A240 316 | 0.08 max | 2.00 max | 0.75 max | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
| A193 B7 | 0.37–0.49 | 0.65–1.10 | 0.15–0.35 | 0.035 | 0.040 | 0.75–1.20 | — | 0.15–0.25 |
| A193 B8M | 0.08 max | 2.00 max | 1.00 max | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
Heat numbers are recorded against each clamp so a repair can be traced years later.
Minimum room-temperature values to the governing specification.
Swipe the table sideways to see all columns.
| Grade | Tensile Strength (MPa, min) | Yield Strength (MPa, min) | Elongation (%, min) | Hardness (HB) |
|---|---|---|---|---|
| A516 Gr. 70 | 485–620 | 260 | 21 | — |
| IS 2062 E250 | 410 | 250 | 23 | — |
| API 5L X52 | 455 | 360 | 21 | — |
| API 5L X65 | 535 | 450 | 18 | — |
| A240 304 | 515 | 205 | 40 | 201 max |
| A240 316 | 515 | 205 | 40 | 217 max |
| A193 B7 (≤ 64 mm) | 860 | 720 | 16 | 321 max |
Clamps and sleeves are hydrostatically tested to 1.5 times the rated working pressure before dispatch.
Where repair, support and protection products are called for.
Emergency repair clamps are made to the measured dimensions of your pipe and despatched on priority — tell us what you are dealing with.
