6 Products in this range
We buy from primary and reputable secondary mills, and every item is stocked against its own test certificate. That matters more than price on a coded job: material without traceable documentation cannot go into a pressure part, no matter how good the steel is.
Because the same works cuts, machines and fabricates, you can order material already sized — plate profiled to your nesting, bar cut to length, sections mitred — and skip a handling step entirely. One of our standing records is a 300 mm round bar, 10 metres long, produced in two days and exported to the UAE against an emergency requirement.
Six material families, supplied in carbon steel, alloy steel, stainless steel and special metals.
01

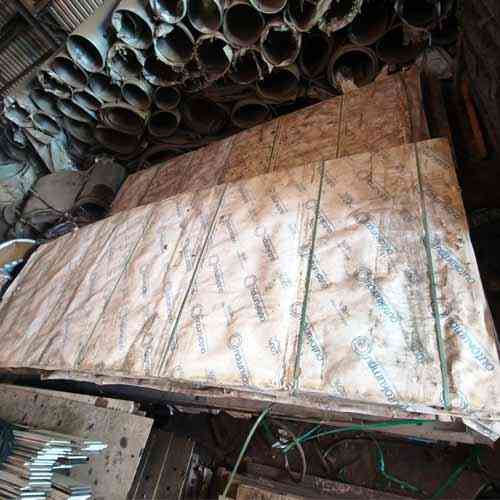

Hot rolled, normalised and quenched-and-tempered plate for vessels, tanks, structures, liners and wear parts. Supplied as full plates or profiled to your DXF on the laser and plasma tables, with the heat number transferred onto every piece before it is cut free from the parent plate.
02

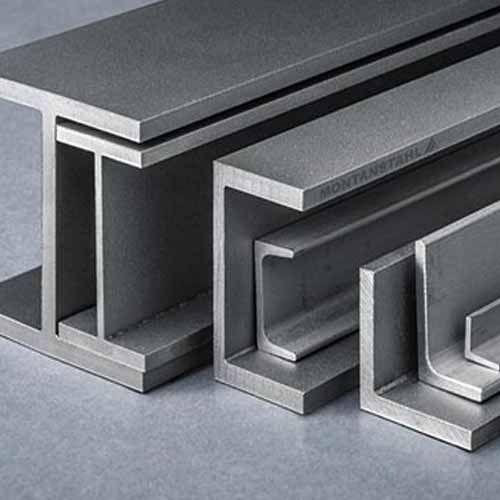

Beams, columns, channels, angles, flats and hollow sections for platforms, pipe racks, supports, skids and plant structures. Sections can be supplied plain, or cut, drilled, coped and shot blasted ready for erection — which saves a fabricator the slowest part of the job.
03

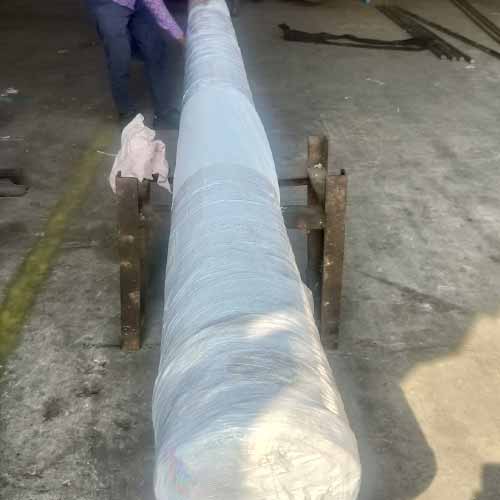

Black, bright and peeled bar for shafts, pins, flanges, machined components and forging stock. Free-cutting grades are held for volume turning work, and alloy grades in the heat-treated condition where the part has to reach a strength that as-rolled steel simply will not give.
04

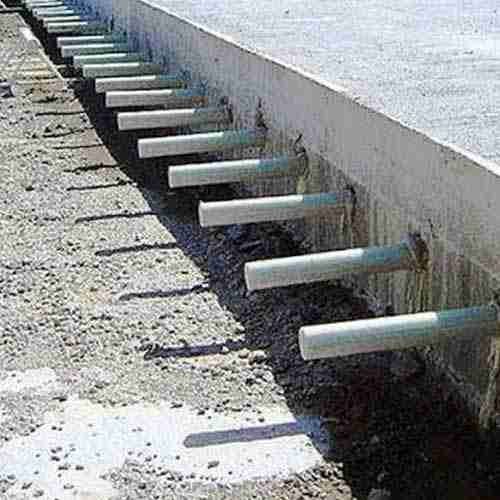

Plain round bars set across a concrete pavement joint to carry load from one slab to the next while still letting the slabs move. Both ends are square cut and de-burred, and one end is normally coated or capped so it can slide — a bonded dowel defeats the whole purpose of the joint.
05

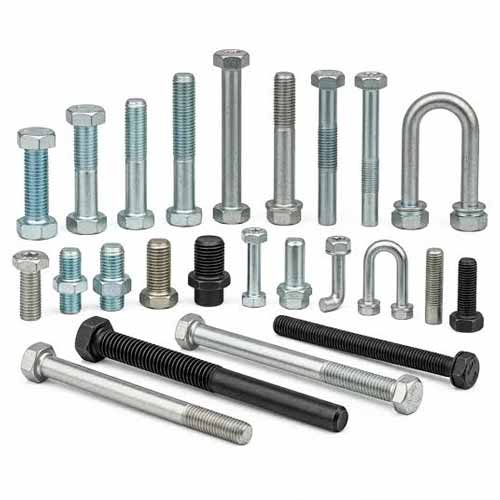

Stud bolts, hex bolts, nuts, washers, foundation bolts and anchor sets for flanged joints, structures and equipment mounting. Bolt and nut grades are supplied as a matched pair — B7 with 2H, B8M with 8M — because mixing them is how a joint galls or fails at temperature.
06

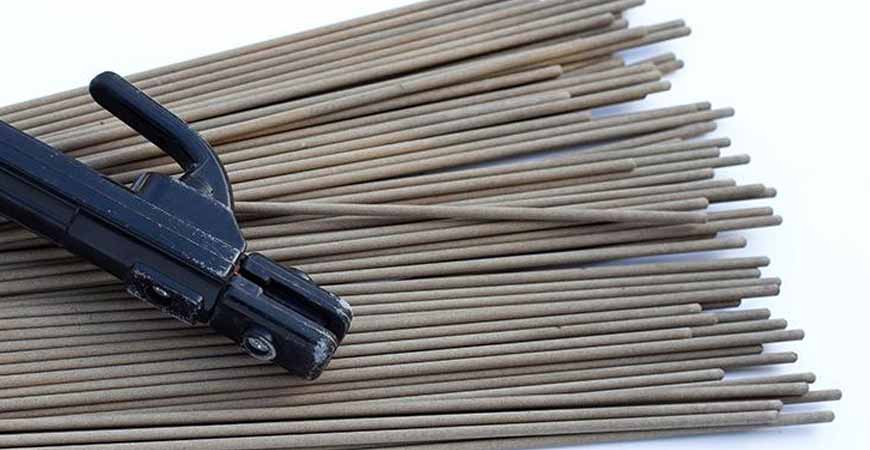

Electrodes, TIG and MIG filler wire, flux cored wire and hardfacing consumables, matched to the parent metal of the joint. Low-hydrogen electrodes are supplied in sealed packs with the baking requirement printed on them, since a damp basic electrode is a cracked weld waiting to happen.
Equivalent designations across the specifications we are asked for most often.
Swipe the table sideways to see all columns.
| Category | Indian Standard | ASTM / ASME | EN |
|---|---|---|---|
| Structural Steel | IS 2062 E250 / E350 | ASTM A36, A572 Gr 50 | S235JR, S355JR |
| Pressure Vessel Plate | IS 2002 Gr 2 | SA 516 Gr 60 / 70 | P265GH, P355GH |
| Alloy Plate | — | SA 387 Gr 11 / 22 | 13CrMo4-5, 10CrMo9-10 |
| Stainless Plate | IS 6911 | SA 240 304 / 304L / 316 / 316L | 1.4301, 1.4307, 1.4401, 1.4404 |
| Carbon Bar | IS 1570 C40 / C45 | AISI 1040 / 1045 | EN8, EN9, C45 |
| Alloy Bar | IS 1570 40Cr1Mo28 | AISI 4140 / 4340 | EN19, EN24, 42CrMo4 |
| Reinforcement / Dowel | IS 432 Gr I, IS 1786 | ASTM A615 Gr 60 | B500B |
Special metals — duplex, Inconel, Monel, Hastelloy, titanium and aluminium — are procured against firm orders with full traceability.
Typical ladle analysis of the commonly stocked grades, percent by weight.
Swipe the table sideways to see all columns.
| Grade | C | Mn | Si | P max | S max | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| IS 2062 E250 | 0.23 max | 1.50 max | 0.40 max | 0.045 | 0.045 | — | — | — |
| IS 2062 E350 | 0.20 max | 1.60 max | 0.45 max | 0.045 | 0.045 | — | — | — |
| ASTM A36 | 0.26 max | 0.60–0.90 | 0.40 max | 0.040 | 0.050 | — | — | — |
| SA 516 Gr 70 | 0.27 max | 0.85–1.20 | 0.15–0.40 | 0.035 | 0.035 | — | — | — |
| EN8 / C45 | 0.40–0.45 | 0.60–0.90 | 0.10–0.35 | 0.040 | 0.040 | — | — | — |
| EN19 / 42CrMo4 | 0.36–0.44 | 0.65–0.90 | 0.10–0.35 | 0.035 | 0.035 | 0.90–1.20 | — | 0.15–0.30 |
| EN24 / 817M40 | 0.36–0.44 | 0.45–0.70 | 0.10–0.35 | 0.035 | 0.035 | 1.00–1.40 | 1.30–1.70 | 0.20–0.35 |
| SS 304 | 0.08 max | 2.00 max | 0.75 max | 0.045 | 0.030 | 18.0–20.0 | 8.0–10.5 | — |
| SS 316 | 0.08 max | 2.00 max | 0.75 max | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
Carbon equivalent is reported on request where the material is to be welded without preheat.
Minimum room-temperature values in the normal supply condition.
Swipe the table sideways to see all columns.
| Grade | Condition | Tensile (MPa, min) | Yield (MPa, min) | Elongation (%, min) |
|---|---|---|---|---|
| IS 2062 E250 | As rolled | 410 | 250 | 23 |
| IS 2062 E350 | As rolled | 490 | 350 | 22 |
| ASTM A36 | As rolled | 400–550 | 250 | 20 |
| SA 516 Gr 70 | Normalised | 485–620 | 260 | 21 |
| EN8 | Normalised | 620 | 400 | 16 |
| EN19 | Quenched & tempered | 850–1000 | 680 | 13 |
| EN24 | Quenched & tempered | 930–1080 | 750 | 12 |
| SS 304 | Annealed | 515 | 205 | 40 |
| SS 316 | Annealed | 515 | 205 | 40 |
| ASTM A193 B7 | Q&T (≤ 64 mm) | 860 | 720 | 16 |
Hardness, impact and through-thickness testing can be added to the order where the design demands it.
Where this material goes.
Material you can prove is material you can use.
Before a plate or bar is cut, the heat number is hard-stamped or paint-marked onto every resulting piece.
EN 10204 3.1 certificates are issued with every despatch, correlated to the marked heat on each item.
Alloy and stainless material is PMI checked on receipt and again before despatch, so a mixed grade never leaves the yard.
Laser, plasma and saw cutting to your list or DXF, with edges de-burred and pieces bundled by mark number.
Grade, size, quantity and the certificate you need — we will confirm availability and price, including cut-to-size options.
