Industrial Fabrication

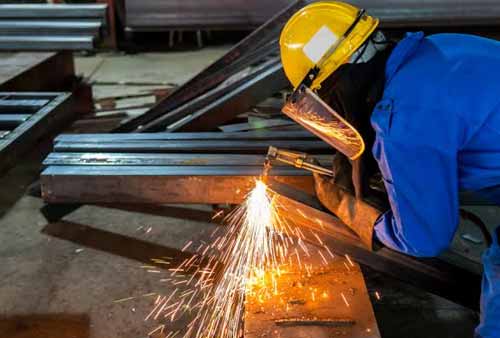

Fabrication and machining of all industrial components in Carbon Steel, Alloy Steel, Stainless Steel and special metals — pipe spools, structures, plate work, skids and pressure parts, built to drawing in our own works.
- Home
- Other Services
- Industrial Fabrication
2days
300 mm × 10 m bar,
made and exported
made and exported
What This Service Is
One Works, From Plate to Painted Assembly
Fabrication goes wrong in the gaps — material waiting at a cutting vendor, a spool held up at a heat treatment shop, a weld rejected after the assembly has already been painted. We keep cutting, forming, welding, machining and testing under one roof precisely so those gaps do not exist.
A standing example: a 300 mm round bar, ten metres long, was manufactured in two days and exported to the UAE against an emergency requirement. That is not the normal schedule for such a piece — it was possible only because every operation sat in the same building and could be run back to back.
- Materials: CS, alloy steel, SS, duplex and special metals.
- Scope: Spools, structures, plate work, skids, tanks, pressure parts and machining.
- Delivery: Fabricated, tested, coated and packed ready for erection.
What We Fabricate
Six streams of work, all drawing on the same shop floor and the same inspection regime.
Structural Fabrication
Platforms, pipe racks, ladders, walkways, equipment frames and supports fabricated from beams, channels, angles and hollow sections.
Plate & Sheet Work
Hoppers, chutes, ducting, casings, liners, guards and bins — rolled, pressed, formed and welded from plate and sheet.
Pressure Parts
Shells, dish ends, nozzles, tube sheets and vessel internals fabricated to ASME Section VIII Div 1 or IS 2825 where the code applies.
Skids & Assemblies
Complete skid-mounted packages — base frame, piping, supports and equipment mounting — assembled and tested before despatch.
Machining & Job Work
CNC and conventional machining of components, whether standalone or as part of a fabricated assembly.
In-House Machine Facility
Every operation below runs in our own works — nothing critical is sub-contracted out of sight.
CNC
Lathe
Cutting
Grinding
Press
Bending
Drilling
Electro Welding
Spot Welding
Laser Cut
PMI
MPI
From Drawing to Despatch
Drawing Review
We read the drawing before quoting — material, code, weld details, NDT extent and tolerances all change the price and the schedule.
Material & Traceability
Material is drawn against certificate, and the heat number is transferred to every piece as it is cut.
Cut, Form & Fit
Laser, plasma and saw cutting, rolling, pressing and bending, then fit-up checked against the drawing before any welding starts.
Weld & Heat Treat
Welding to qualified procedures, with preheat, interpass control and post-weld heat treatment where the material demands it.
Test & Inspect
Dimensional check, PMI, MPI, DP, radiography and hydro testing as the inspection plan requires.
Coat, Pack & Despatch
Blasting, priming and painting, then marking, crating and despatch with the full document package.
Fabrication Capability
Working ranges and the codes we fabricate to.
Swipe the table sideways to see all columns.
| Work Type | Range | Materials | Governing Code |
|---|---|---|---|
| Pipe Spools | 15 mm to 1500 mm NB | CS, AS, SS, duplex | ASME B31.1 / B31.3 |
| Structural | Up to 20 t per assembly | IS 2062 E250 / E350, A36 | IS 800, AWS D1.1 |
| Plate Work | 3 mm to 60 mm thickness | CS, SS, wear plate | Drawing / client spec |
| Pressure Parts | Up to 4000 mm diameter | SA 516, SA 387, SA 240 | ASME VIII Div 1, IS 2825 |
| Machining | Turning to 500 mm dia × 1500 mm | All machinable grades | Drawing tolerance |
| Welding Processes | SMAW, GTAW, GMAW, FCAW, SAW | Matched consumables | ASME IX qualified procedures |
Third-party inspection by TPI agencies or your own inspectors is welcomed at any hold point in the plan.
Who We Fabricate For
Oil & Gas
Boiler Plants

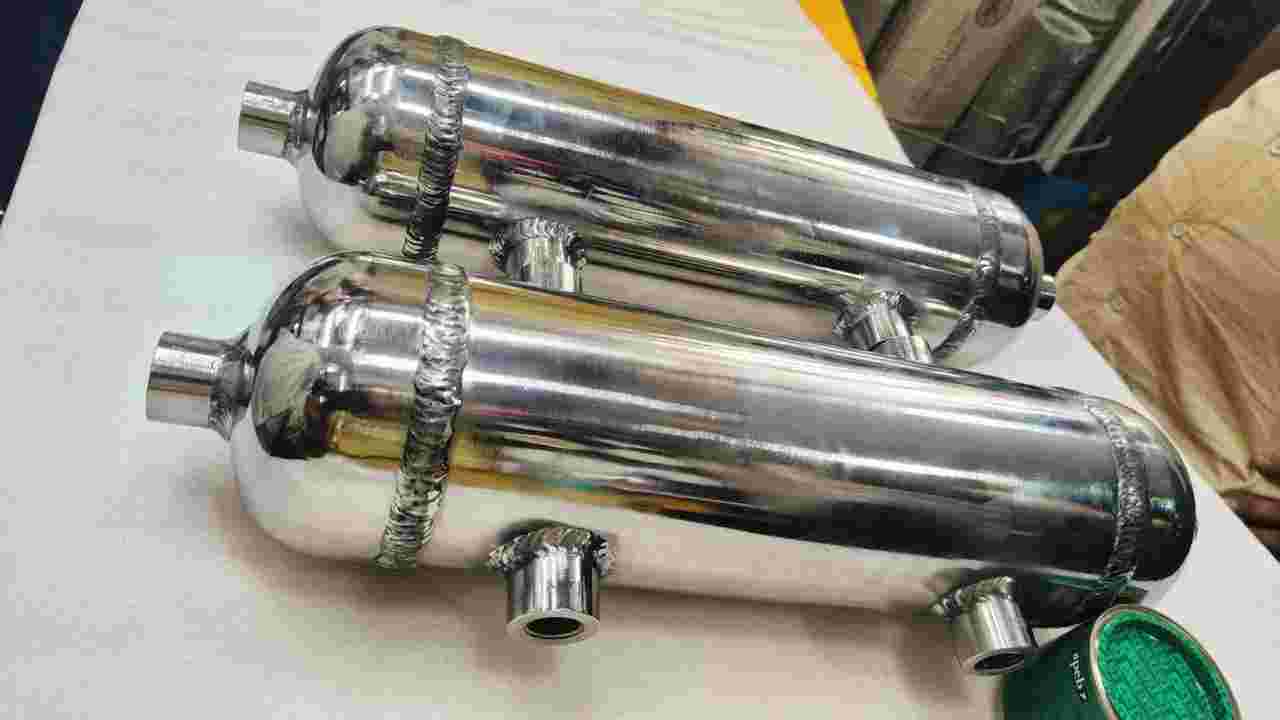

Construction
Pharma
Aerospace
Cement
Power
Refineries
Pollution Control Equipment
Shipyards
Chemical Plants
Agriculture
Common Questions
Yes. Job work on free-issue material is routine — material is logged in against its certificate, identity is maintained through every operation, and offcuts are returned or accounted for with the finished job.
Yes. We fabricate to ASME B31.1, B31.3 and Section VIII Div 1, weld to procedures qualified under Section IX, and accept TPI or client inspection at the hold points agreed in the inspection and test plan.
Drawings or isometrics, the material specification, quantity, the applicable code, the extent of NDT required and the surface protection. If any of those are still open, tell us the intended service and we will propose them with the quotation.
Yes, and it is a large part of what we do. Because cutting, welding, machining and testing are all in-house, an urgent item can be pushed through the shop back to back instead of queueing at three different vendors.
Products & Services That Go With This
Pipe Spools & Fittings
Spools, bends, tees and fittings manufactured as products in their own right.
Machinery & Specialized Parts
CNC machining, aerospace components and reverse-engineered machinery spares.
Quality Assurance
The testing, inspection and documentation regime behind every fabricated item.
Send the drawing and we will quote it
Isometrics, GA drawings or a sketch with dimensions — plus the material and the code — are enough to start.
